Wide Range Vacuum Gauge
Seamless measurement from ATM to UHV on a single port
Crystal/Cold Cathode Combination All-in-One Vacuum Gauge
Conventional high vacuum systems normally have three vacuum gauges for measuring three different vacuum ranges, which are atmosphere range, rough vacuum range and high vacuum range. CC-10 wide range vacuum gauge, using a state of the art vacuum measuring technology, allows seamless measurement from atomspheric pressure to ultra high vacuum with single vacuum gauge on a single vacuum port. The all-in-one design vacuum gauge contained the compact vacuum sensor and the electronics controller which equipped with LED pressure display and interfaces. Just supply 24VDC to CC-10 and , without any operation, you will have pressure reading, three set-point relay contacts, 10VDC analog data and also RS485 digital communication signals.
Features
Free operation
Tough and Safe
Excellent accuracy and stability
Easy maintenance
Accessory, expandability
Energy and space saving
CC-10 Wide Range Vacuum Gauge & P-LOGGER Vacuum Pressure Data Logger Softwarwe Movie
Applications of CC-10
Crystal sensor technology(pressure measurement with crystal)
Specifications
| TITLE | DETAILS |
|---|---|
| Measurement Range | 1.0×10-7Pa to Atomsphere(105Pa) |
| Control Circuit | Control circuit is mounted on sensor assembly on the whole |
| Sensor Technology | Rough vacuum from atmosphere to 10Pa is measured using crystal sensor, while pressure from 10Pa to 1.0×10-7 is measured with double inverted magnetron cold cathode sensor. Both of the sensor are automatically switched depend on pressure range. |
| Pressure Display | 7 segment LED digital display on the front panel. External display unit(DS-10) is available as an option |
| Pressure Signal Output | Analog output 0 - 10V(selecta modes, LOG or combined linear) |
| Set Point | 3 set points(with hysteresis) standard DC50V, 0.12A PhotoMOS relay. One independent, two common ground |
| Relay I/O | Crystal zero adjustment trigger, ATM adjustment trigger, High voltage inhibit |
| Digital Interface | RS485 |
| Input Voltage | DC22 - 26V (available 100VAC/24VDC adaptor as an option) Power consumption MAX 8W |
| Operation Environment | Storage: -40 deg C ~ +55 deg C. Operation: max 50 deg C. Bake temperature: 150 deg C (with electronics module removed) |
| Vacuum Connection | NW25 and Rotatable 2.75"CF |
| Connector | Dsub 15Pin(attached female connector) |
| Weight | 840g(NW25 model), 1060g(2.75"CF model) |
CC-10 Dimension(mm)
Accessory
Connecting with analog output of CC-10, we can use DS-10 Display Unit as external display. 3 set points (One is independent: AC25V 3A, 2 are common: AC25V 1A) Total 6 set points are available in conjunction with 3 set points of CC-10.
Conpact body: W48mm x H48mm x D108mm
This is AC100V adaptor for supplying DC24V to CC-10 Wide Range Gauge and DS-10 Display Unit. Users can connect to accesible AC100V electric source, so it is useful in laboratory without DC24V. And if we carry around with CC-10 and AC adaptor.
We can easily measure vacuum pressure for field service everywhere.

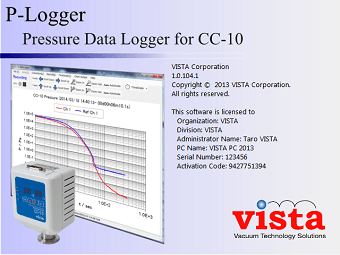

The pressure data of CC-10 gauge is plotted in real time and recorded as CSV file. The P-LOGGER has functions that it informs users about condition of system by E-mail. This function is useful when the operator is away from the system. And it is possible to mark and write some comments in any points upon graph during data measurement.
Recordable data for maximum 16 CC-10s with a PC.
